Provides up to 4 years of continuous operation (at 10s advertising interval) for reliable, long-term deployment.
Small form factor allows for simple, non-intrusive integration with external wiring or machine interfaces.
Translates digital Hi/Low voltage signals or contact closures (Dry/Wet Contact) into wireless data packets.
Supports connection to an external flood sensor probe for critical water leak detection and proactive alerting.

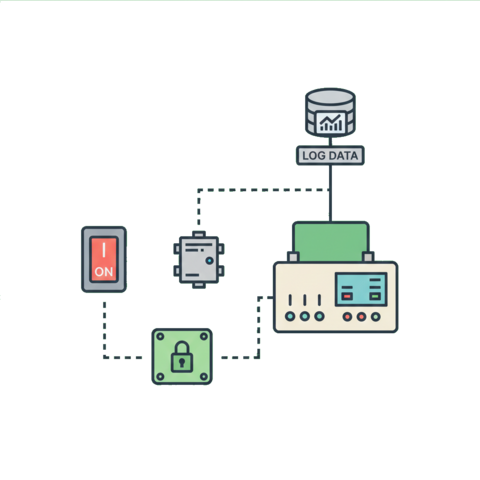

General State Monitoring
Connecting to external switches, relays, or
safety circuits to log basic ON/OFF or
OPEN/CLOSED status.

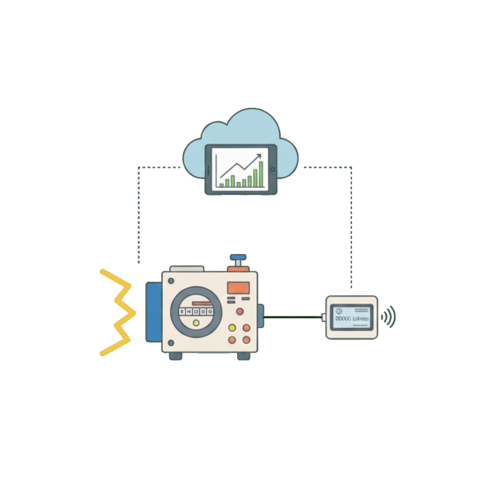

Equipment Utilization
Directly logging the operating status (e.g.,
RUNNING/STOPPED) of machinery or industrial
equipment via its control wiring.
Environmental Alerting
Monitoring for water leaks in critical areas
(e.g., basements, utility rooms) using the
optional flood probe.

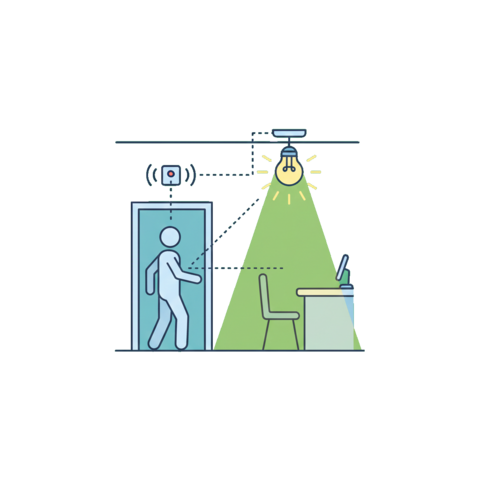

Lighting & Environment Status
Monitoring ambient light conditions (e.g.,
room lighting status, darkness in storage)
or confirming door closure using the digital
input.

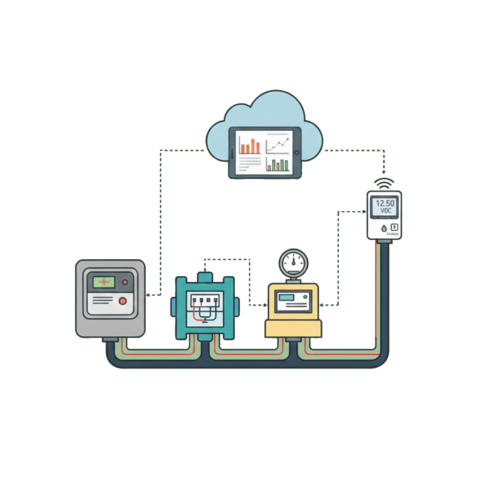

Pulse Counting
Can be configured to count pulses from
utility meters (water, electricity) or
production equipment for usage and output
logging.
| Battery Life | 4 years of battery life( 10s ADV interval) |
| Battery | CR2032 x 2 |
| Operating Temperature | -20°C to 60°C |
| Bluetooth® Low Energy | Bluetooth 5 (support Coded Phy) |
| Maximum BLE Range | Up to 100 meters (Line of Sight) |
RoHS/REACH/WEEE Declaration
