iBS03AD-V/D/A
DC Voltage Digital-in 4-20mA current Sensor Beacon
IPx7 Water Resistance
Designed for durability and reliable long-term performance in demanding industrial environments.
Long-Life Operation
Provides over 6 years of continuous operation (at 30s advertising interval) for minimal maintenance.
Compact and Adaptable
Small form factor allows for flexible integration with control cabinets or external sensor wiring.
Analog & Digital Signal Bridging
Connects directly to existing sensors via DC Voltage, Digital Input, 4-20mA current loop, or external NTC thermistors.
Industrial Sensor Integration (IIoT)
iBS03AD-V (Voltage)
Monitoring power consumption, battery status, or DC voltage signals from various power sources and machines.
iBS03AD-D (Digital Input)
Capturing simple state changes, such as equipment on/off status, limit switch triggers, or pulse counting from utility meters.

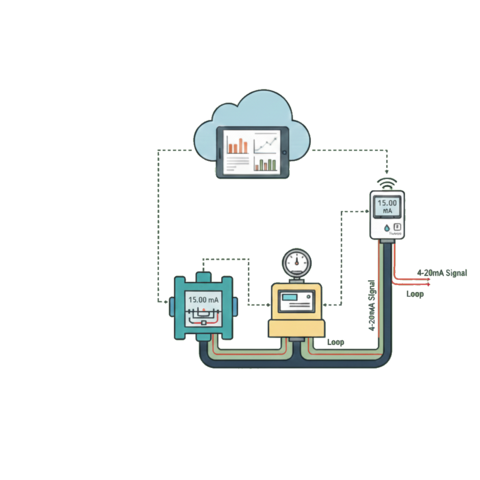

iBS03AD-A (4-20mA Current Loop)
Integrating standard industrial sensors (pressure, flow, level) that output a 4-20mA signal into the wireless BLE network.

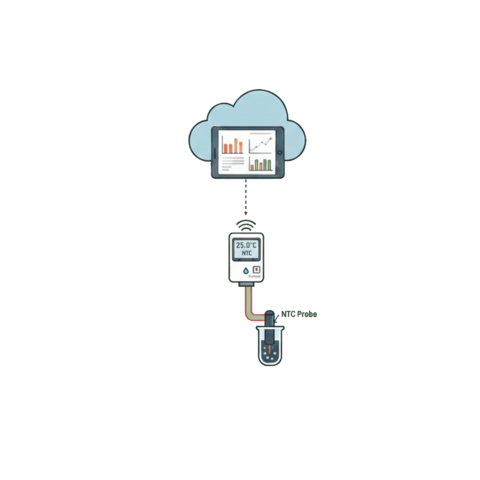

iBS03AD-NTC (NTC Thermistor)
Enabling temperature monitoring via an externally connected NTC thermistor probe, ideal for custom temperature applications.
Parameters
| Battery Life | Over 6 years (Based on 30s Advertising Interval) |
| Battery | CR2450 x 1 |
| Operating Temperature | -20°C to 75°C |
| Waterproof Rating | IPx7 (Protection against temporary immersion) |
| Bluetooth® Low Energy | Bluetooth 5 (support Coded Phy) |
| Maximum BLE Range | Up to 100 meters (Line of Sight) |
