Provides up to 2 years of continuous operation (at 10s advertising interval).
Small form factor enables flexible, simple attachment for various counting and monitoring tasks.

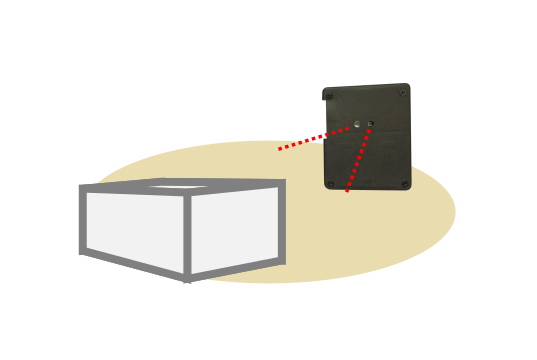

Reliable, non-contact detection of objects or personnel within the fixed 30cm∼50cm range.

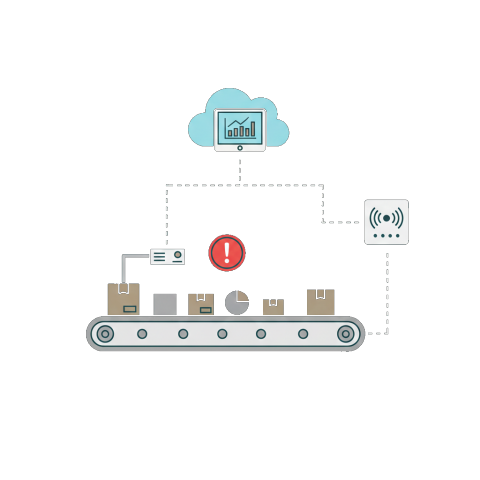

Object Production Line Monitoring
Counting items on a conveyor belt, detecting
product flow, or monitoring material staging
areas in manufacturing and logistics
environments.

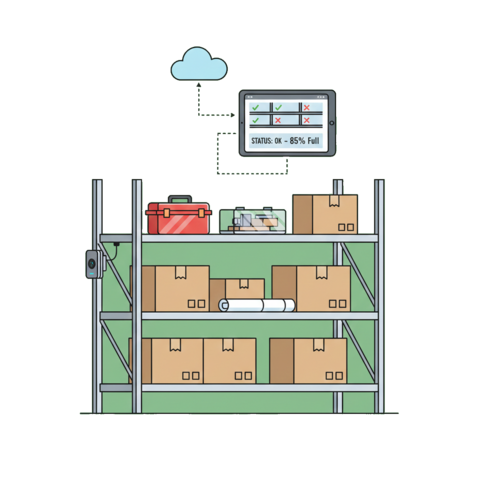

Shelf and Inventory Status
Detecting the presence or absence of a
specific box, tool, or high-value object on
a shelf or in a defined storage location.

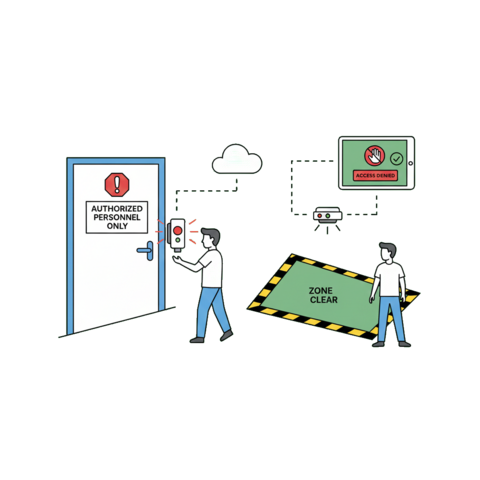

Access & Safety Zones
Monitoring short-range presence to ensure
equipment safety procedures or confirm
personnel location at a specific workstation
(e.g., confirming a hand is near a control
panel).
| Battery Life | Up to 2 years (Based on 10s Advertising Interval) |
| Battery | CR2032 x 2 |
| Operating Temperature | -20°C to 60°C |
| Detection method | Infrared (IR) Reflection |
| Detection distance | 30 ~ 50 cm |
| Bluetooth® Low Energy | Bluetooth 5 (support Coded Phy) |
| Maximum BLE Range | Up to 100 meters (Line of Sight) |
