layout: ../layouts/MyProd.astro title: iBS03R | Time-of-Flight Ranging Beacon description: iBS03R | Time-of-Flight Ranging Beacon sidebar: false navbar: false footer: false

head:

- link
- rel: shortcut icon href: https://www.ingics.com/favicon.png type: image/png

product: title: iBS03R | Time-of-Flight Ranging Beacon model: iBS03R category: BLE Sensor Beacon slogan: title: “iBS03R” details: Time-of-Flight Ranging Beacon img: “img/freeze/tag/iBS03R_icon.png”

features:

name: IPx7 Water Resistance details: Designed for reliable operation in industrial and humid environments, protecting the unit from splashes and temporary immersion. icon: water_drop
name: Optimized Power Efficiency details: Delivers 1.8 to 2.8 years of continuous operation (at 60s advertising interval). icon: eco
name: Compact and Flexible details: Small footprint allows for discreet and simple overhead or side-mount installation. icon: aspect_ratio
name: Time-of-Flight (ToF) Technology details: Provides precise, non-contact distance measurement with a range of 10cm to 300cm. icon: sensors

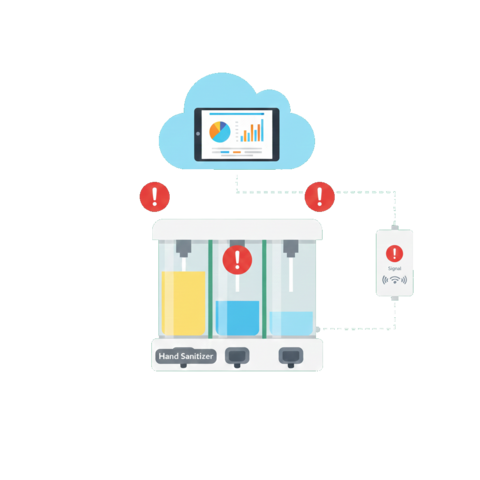

applications: title: “Remote Volume & State Monitoring” cases: - title: Facility Consumption Monitoring purpose: Tracking fluid levels in dispensers (sanitizer, soap, water) for proactive maintenance and replenishment. img: “img/freeze/tag/usecase_q_3.png”

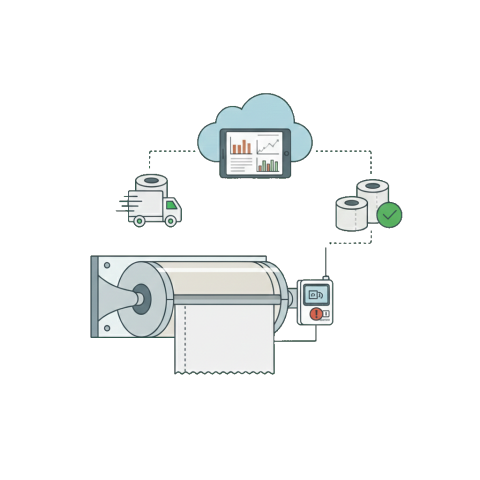

- title: Supply Management & Automation
  purpose: Monitoring consumable items (e.g., paper towel, toilet paper, cleaning supplies) to automate restocking workflows.
  img: "img/freeze/tag/usecase_tof_3.png"

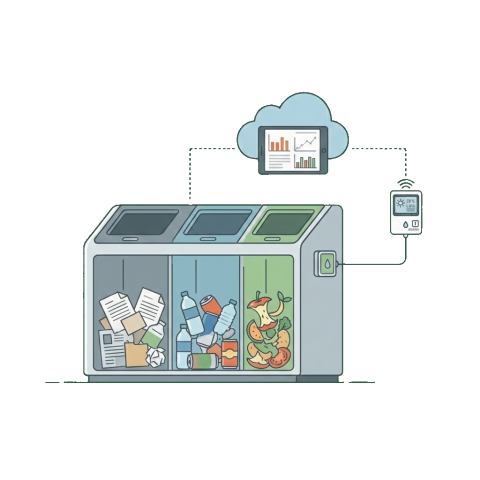

- title: Smart Waste Monitoring
  purpose: Measuring fill levels in trash receptacles or recycling bins to optimize collection routes and schedules.
  img: "img/freeze/tag/usecase_tof_2.png"

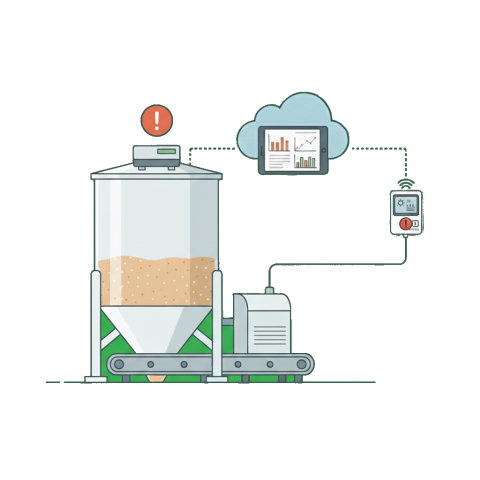

- title: Automated Inventory Leveling
  purpose: Non-contact measurement of bulk goods, raw materials, or components to maintain optimal stock levels.
  img: "img/freeze/tag/usecase_tof_1.png"

parameters:

spec: Battery Life value: Up to 1.8 to 2.8 years (Based on 60s Advertising Interval)
spec: Battery value: CR2450 x 1
spec: Operating Temperature value: -20°C to 75°C
spec: Waterproof Rating value: IPx7 (Protection against temporary immersion)
spec: Bluetooth® Low Energy value: Bluetooth 5 (support Coded Phy)
spec: Maximum BLE Range value: Up to 100 meters (Line of Sight)
spec: ToF Measurement Range value: 10cm to 300cm

dimension: img: “img/freeze/tag/iBS03R-dim.png”

docs:

title: Core files:
- name: INGICS Sensors url: doc/Beacon/BC0039_INGICS_Sensor.pdf
- name: iBS03R Spec url: doc/Beacon/BC0013_Sensor_Beacon_iBS03R_Specification.pdf
- name: iBS03 User Guide url: doc/Beacon/BC0033_Sensor_Beacon_iBS03_User_Guide.pdf
- name: iBS03 Payload Format url: doc/Beacon/BC0034_iBS_Sensor_Beacon_Payload.pdf
- name: ESD Notice for Battery Changing url: doc/Beacon/BC0040_ESD_Notice_Changing_The_Battery.pdf
title: Software & Compliance files:
- name: INGICS Beacon Utility url: https://play.google.com/store/apps/details?id=com.ingics.beaconutil
- name: iOS version Beacon Utility url: https://apps.apple.com/us/app/ingics-beacon-util/id1574283003
- name: iBS01 Tag Utility url: https://play.google.com/store/apps/details?id=com.ingics.tag.igstagconfig
- name: General Reach Declaration of Conformity url: doc/Green/Reach_Declaration_of_Conformity.pdf
- name: General Reach Declaration of Conformity url: doc/Green/Reach_Declaration_of_Conformity.pdf
- name: General WEEE Compliance url: doc/Green/WEEE_Compliance.pdf
- name: iBS03 RoHS DoC url: doc/Green/RoHS_Declaration_of_Conformity_iBS03.pdf
