Wide-Angle Motion Detection
PIR sensor covers a 110° field of view up to 5 meters for effective area monitoring.
Real-Time Alerts
Immediately broadcasts motion events via Bluetooth 5.0 Long Range for security or automation.
Dual Power Options
operate on CR2450 battery or external USB-C power for permanent installations.
Versatile Deployment
Compact IPX7 design allows mounting on walls, ceilings, or under desks.
Security & Occupancy Monitoring
Security Intrusion
Detect unauthorized movement in restricted areas or after hours.
Room Occupancy
Monitor meeting room or desk usage to optimize space utilization.
Automated Lighting
Trigger smart lighting or HVAC systems based on human presence.
Parameters
| Sensor Type | Passive Infrared (PIR) |
| Detection Range | Up to 5 meters / 110° FOV |
| Battery Life | Approx. 3.8 - 4.4 years |

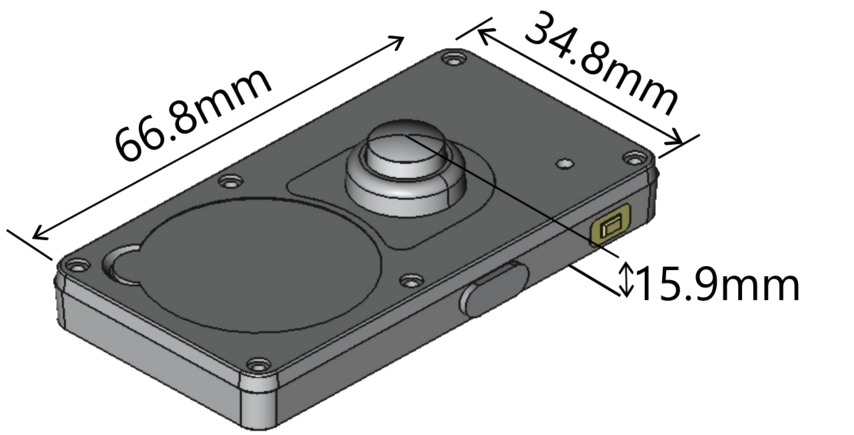

| Dimensions | 66.8 x 34.8 x 16.2 mm |
| Waterproof | IPX7 |
